Hidden Spectacles : An Investigation into Park Royal
As the heart of London's food production / processing and light industry, the future of Park Royal is at a critical juncture with the arrival of HS2 and Crossrail at Old Oak Common. What is the current urban grain of the site and makes it so important to retain?
Digital Publication

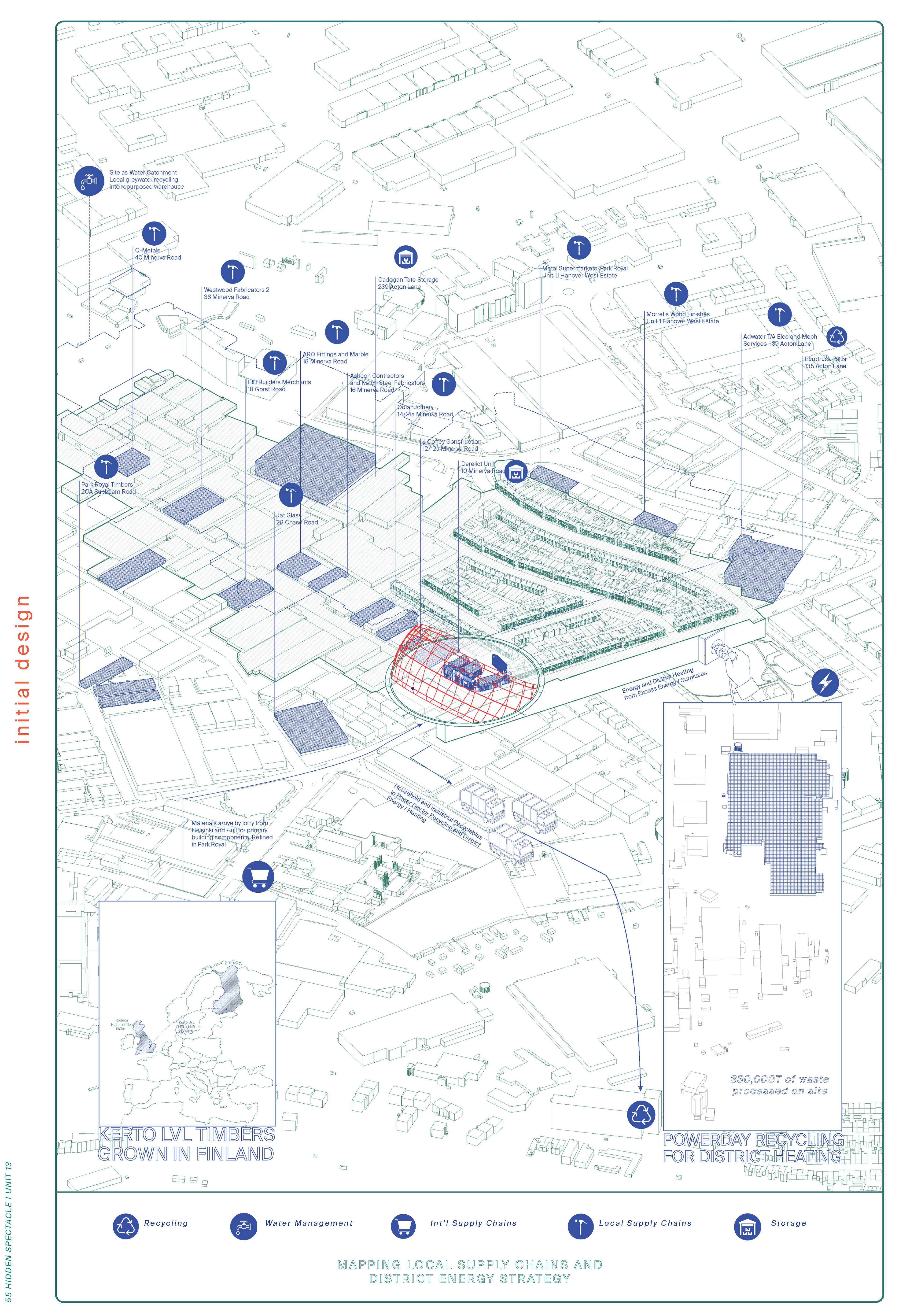

Mapping Park Royal

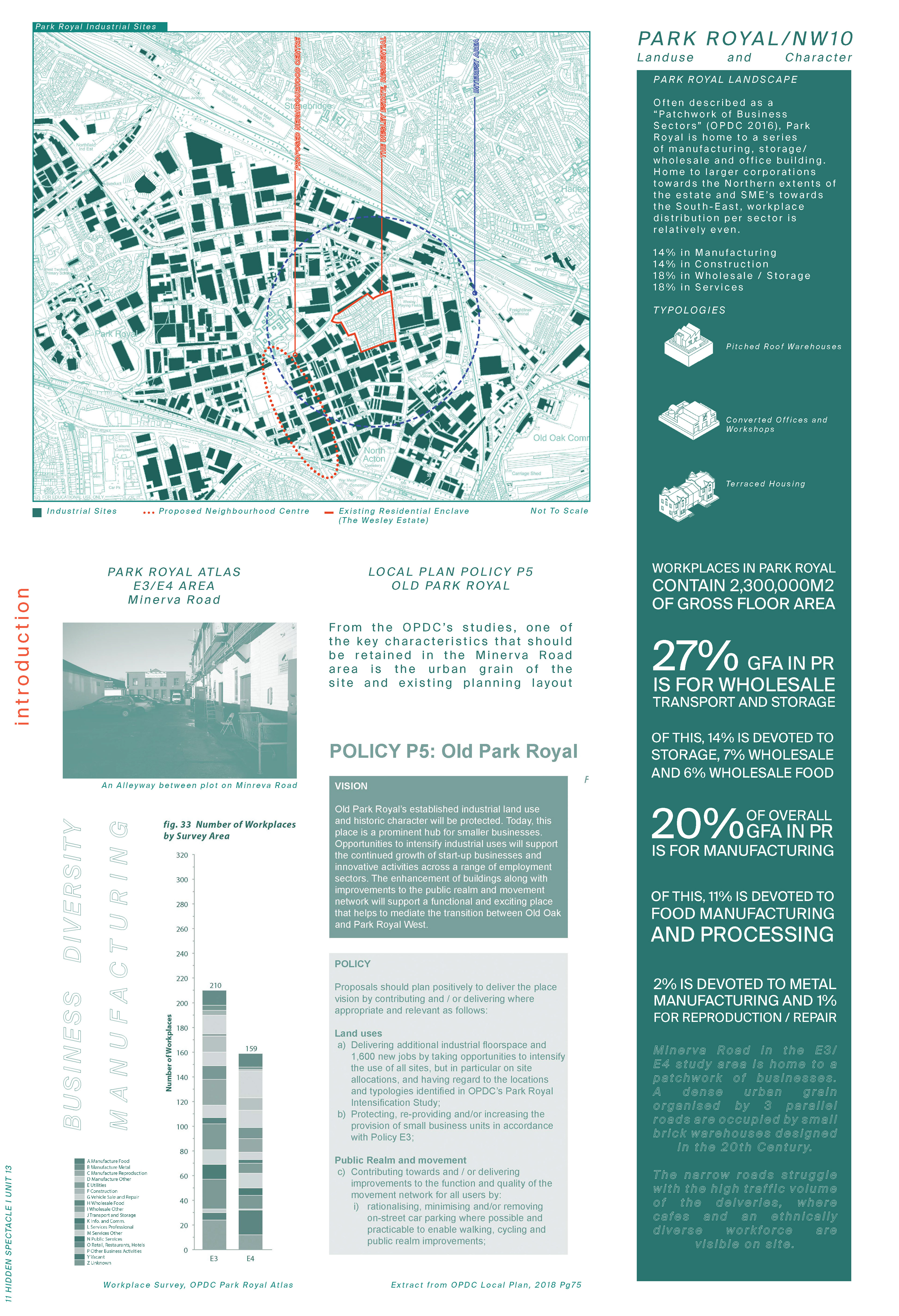

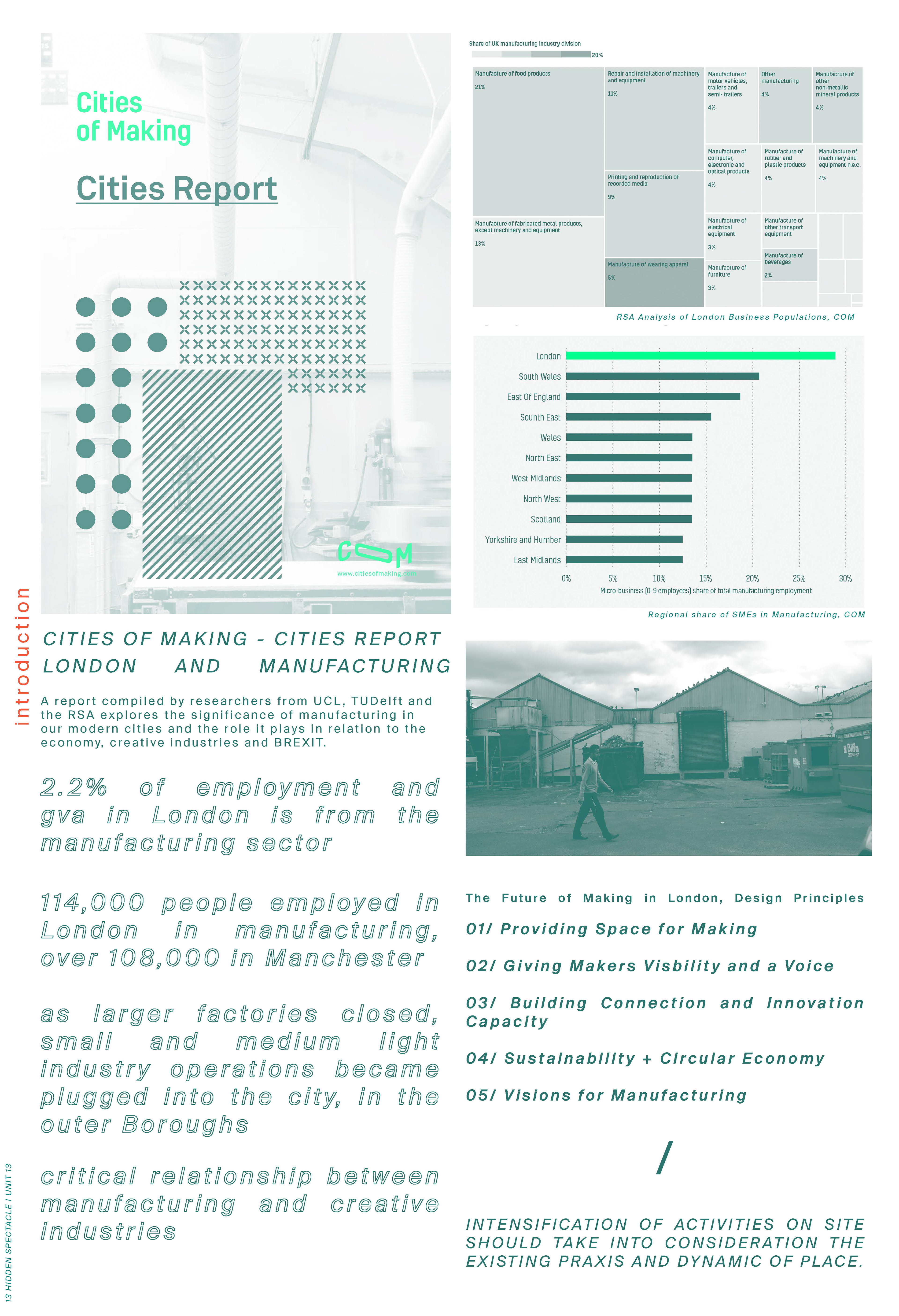

Defined as SIL (Strategic Industrial Land) by the London Plan, Park Royal is made up of a patchwork of light industry and small businesses that enjoy connectivity to central London, where there is a symbiotic relationship between manufacturing and the creative industries.
Digital Publication

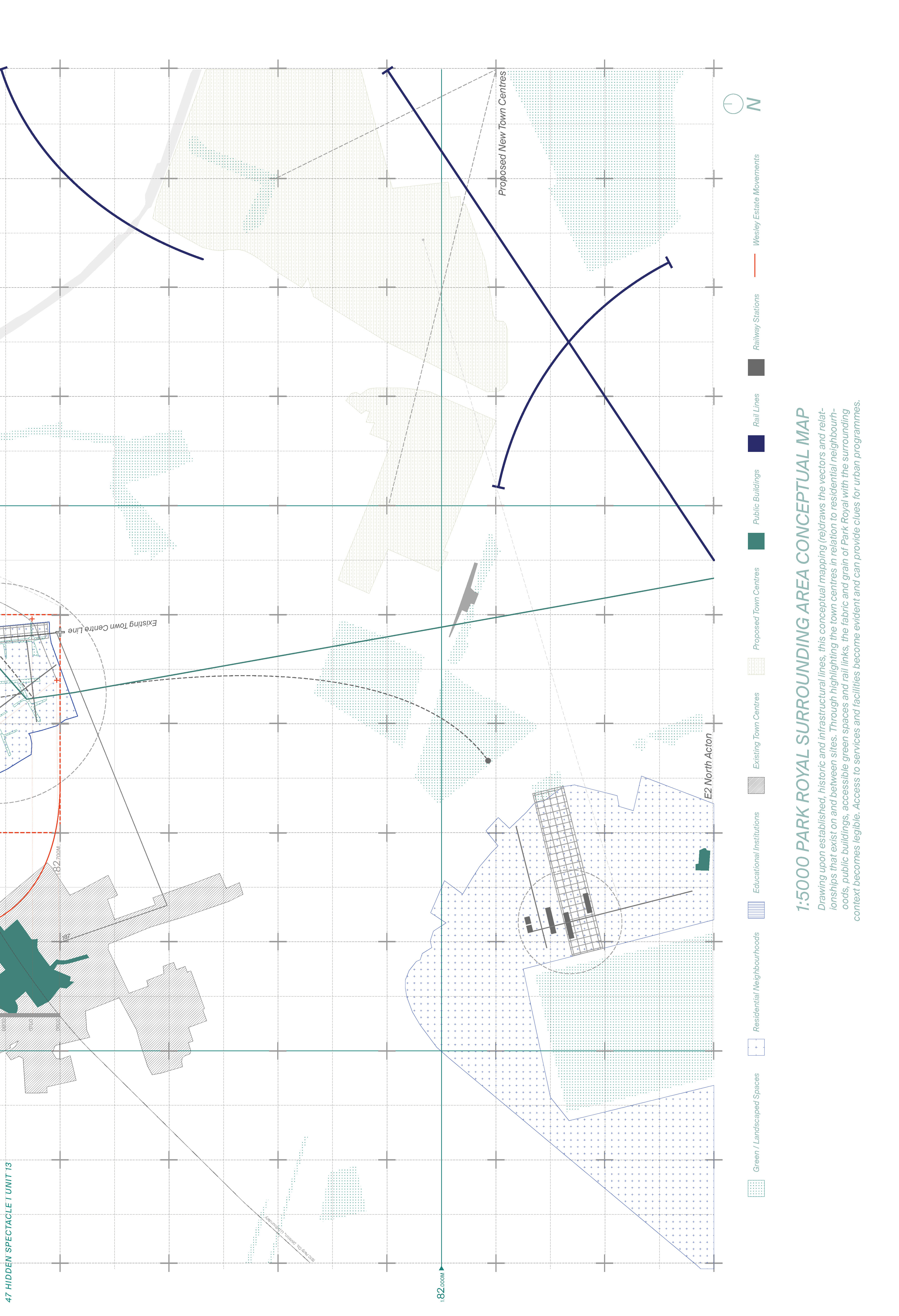

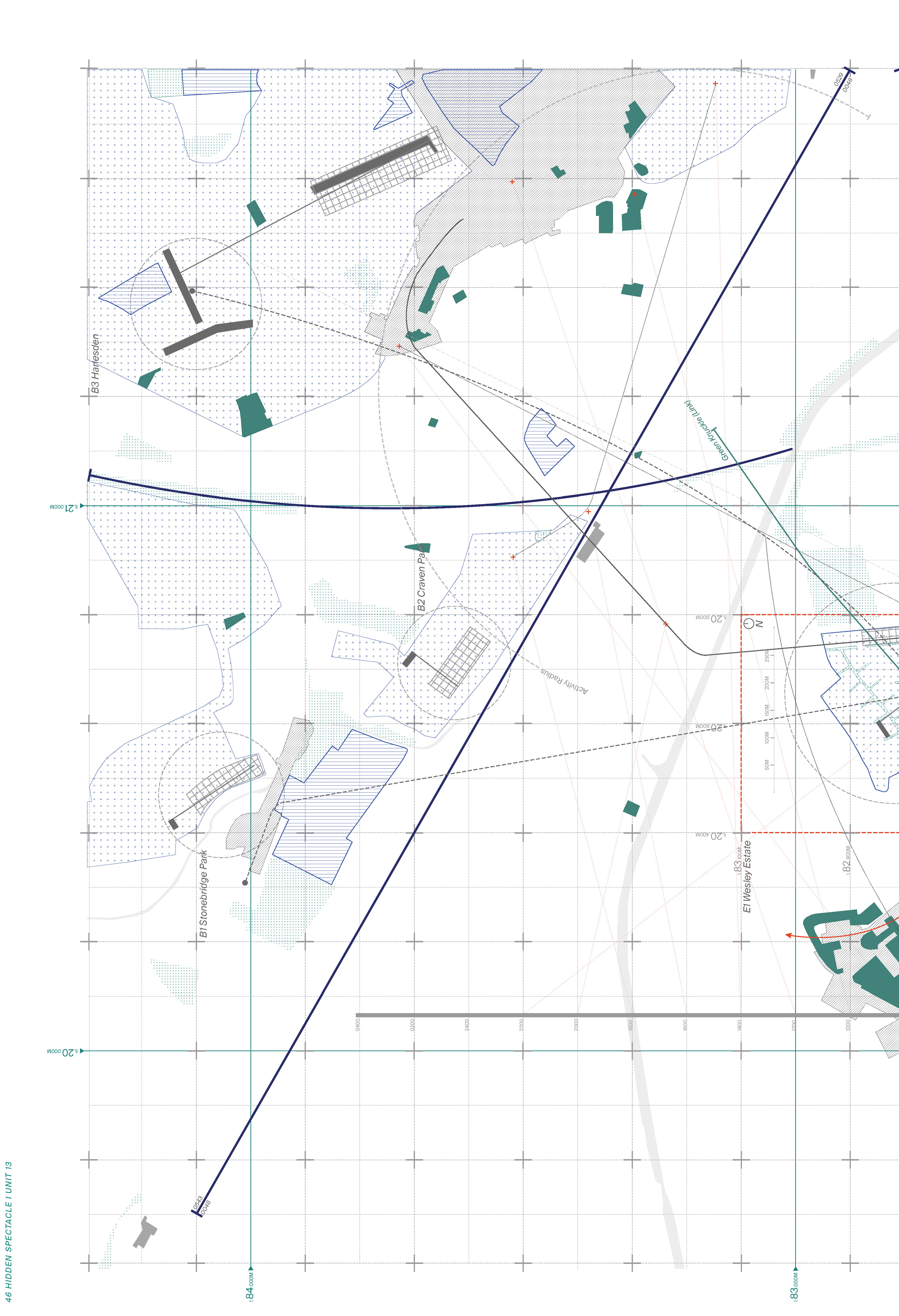

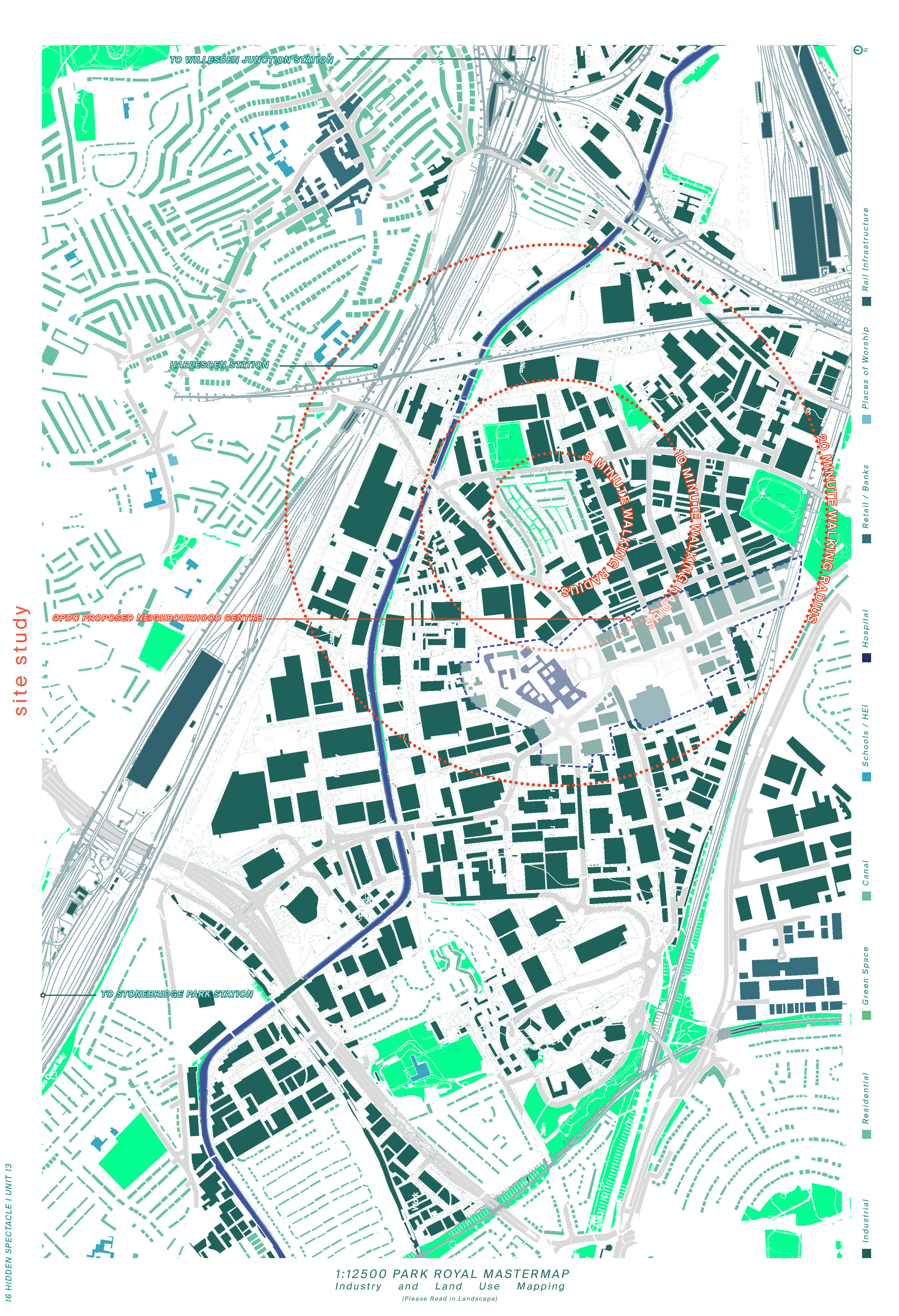

Conceptual Mappings : Park Royal as Knuckle between Industry and Living

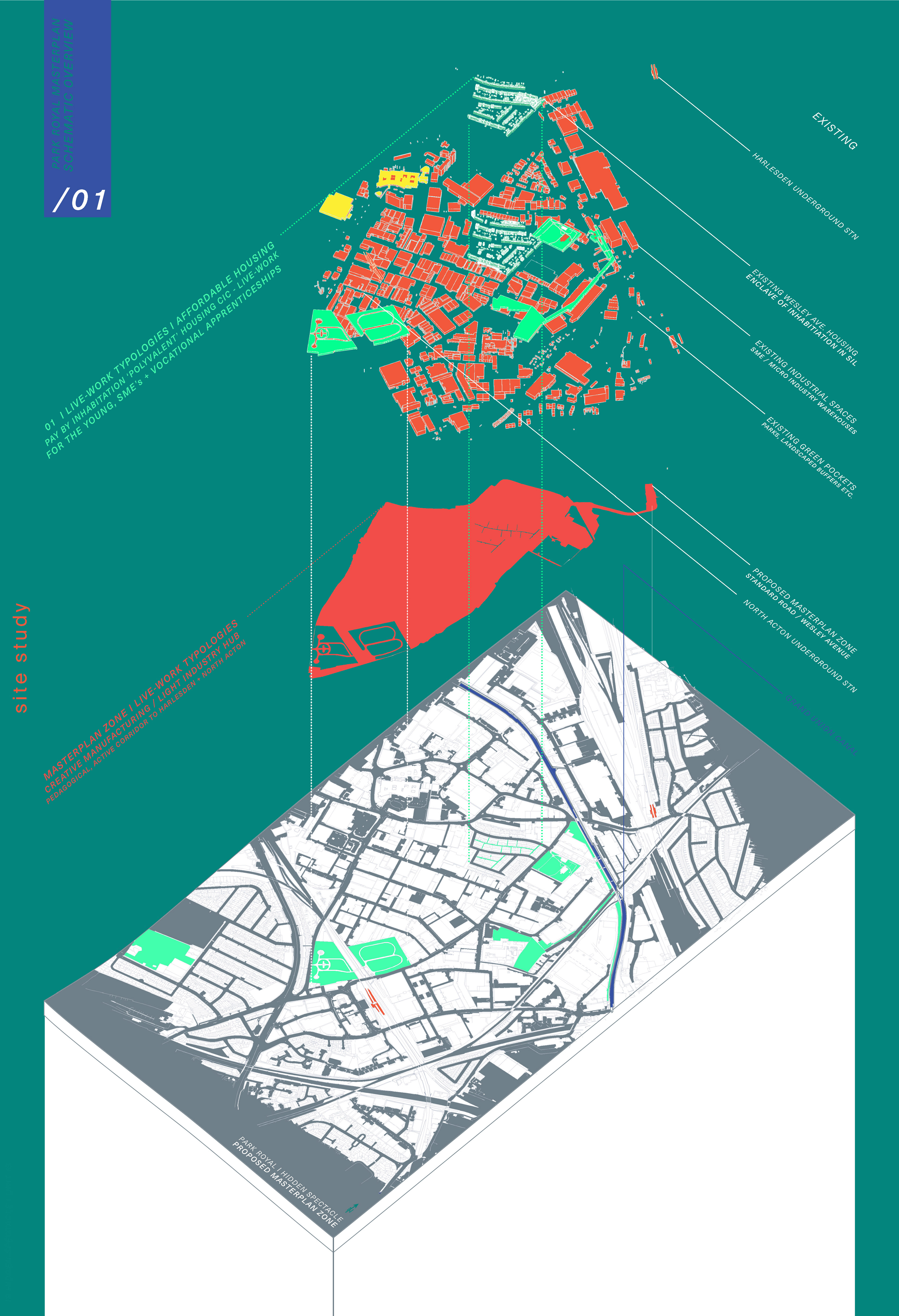

1:5000 scale mappings of industry, key network lines and flows through the site against measurements of diurnal patterns of public activity
Digital Drawing
Schooling and Education as Edge between Industry and Living

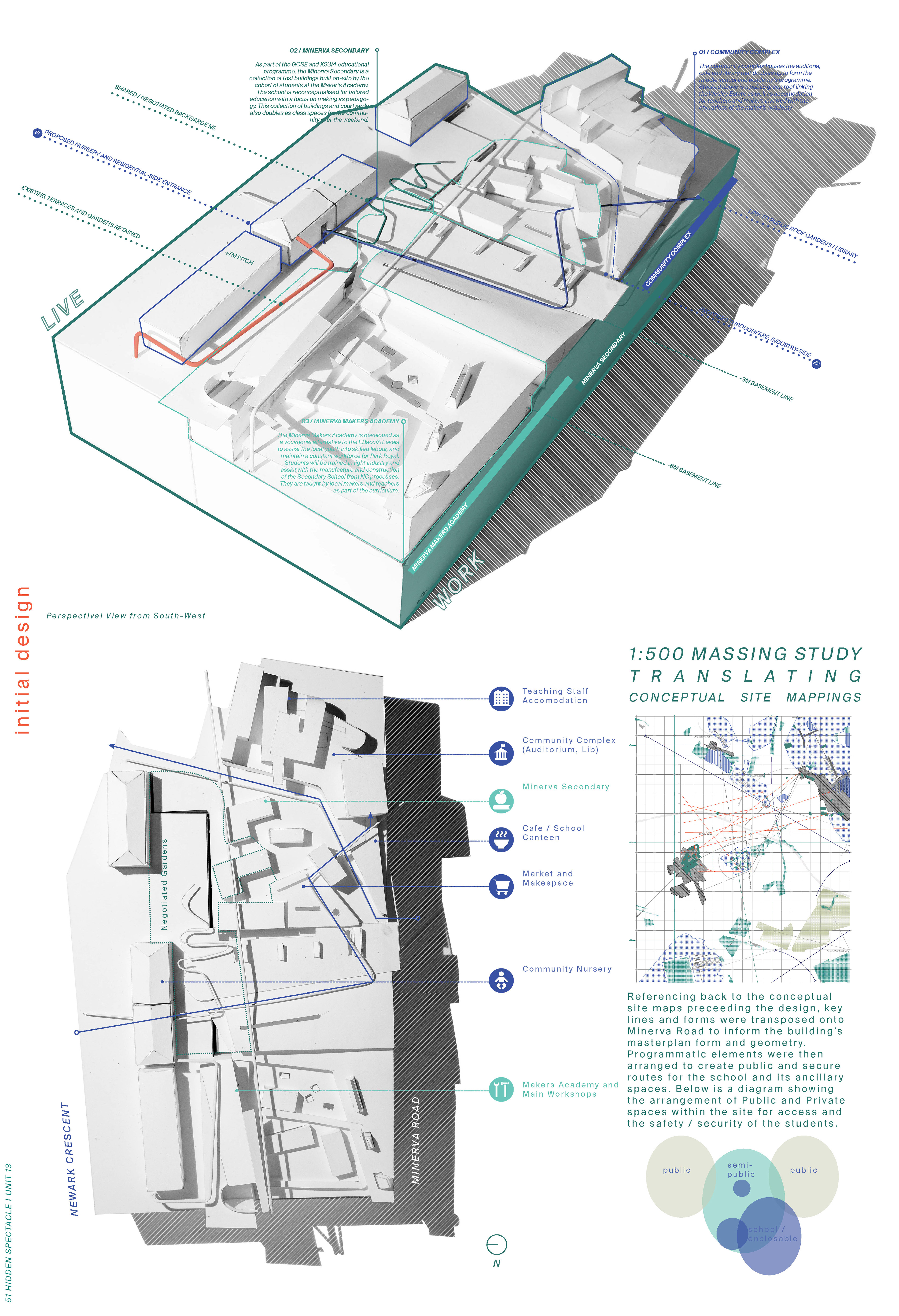

Conceptual massing models studying the tectonics of introducing an educational facility as a soft edge between the worker's housing and industrial premises on Minerva Road, Park Royal
Physical Model and Digital Drawing

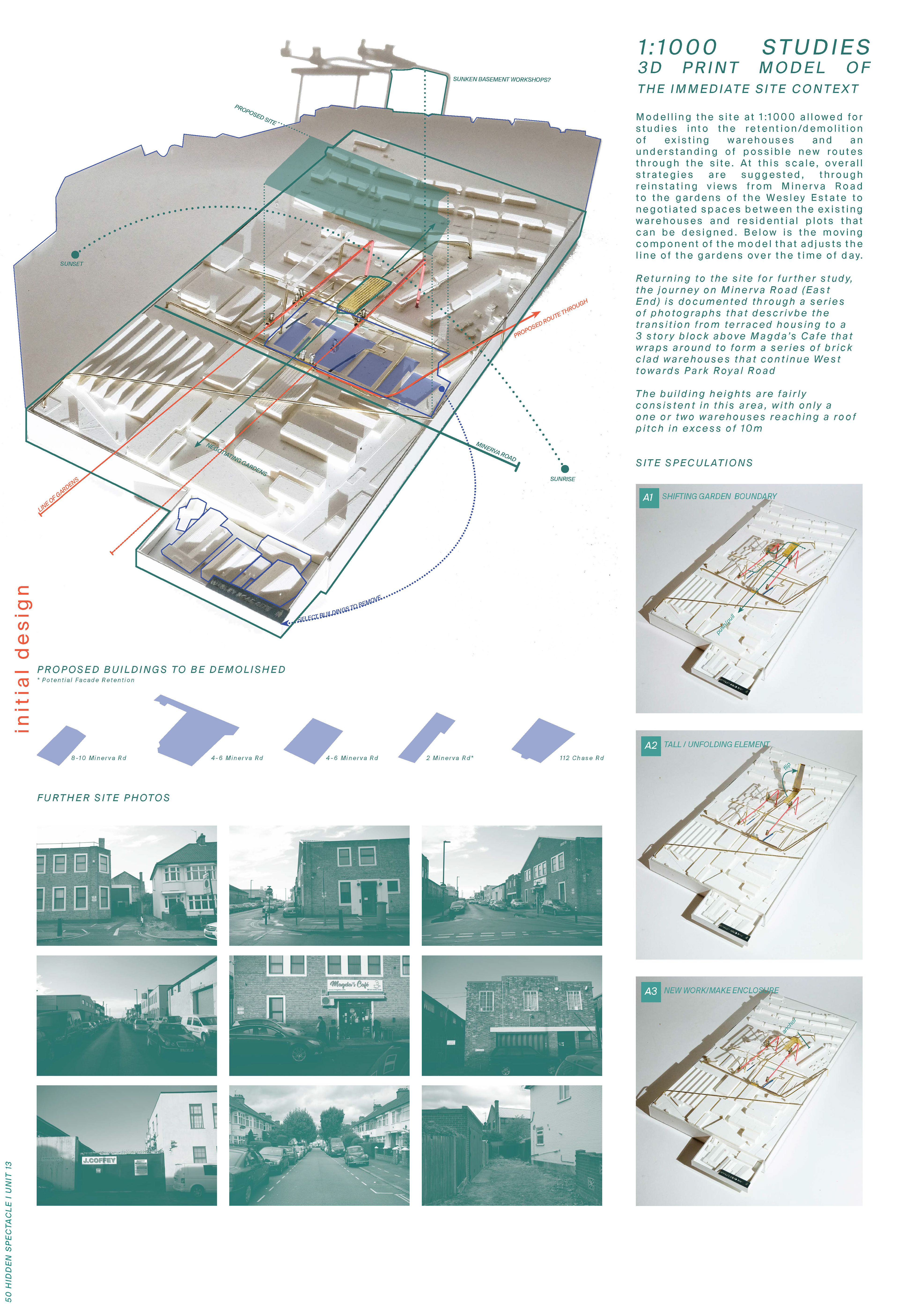

1:1000 Conceptual Site Studies
1:1000 Conceptual Site Studies

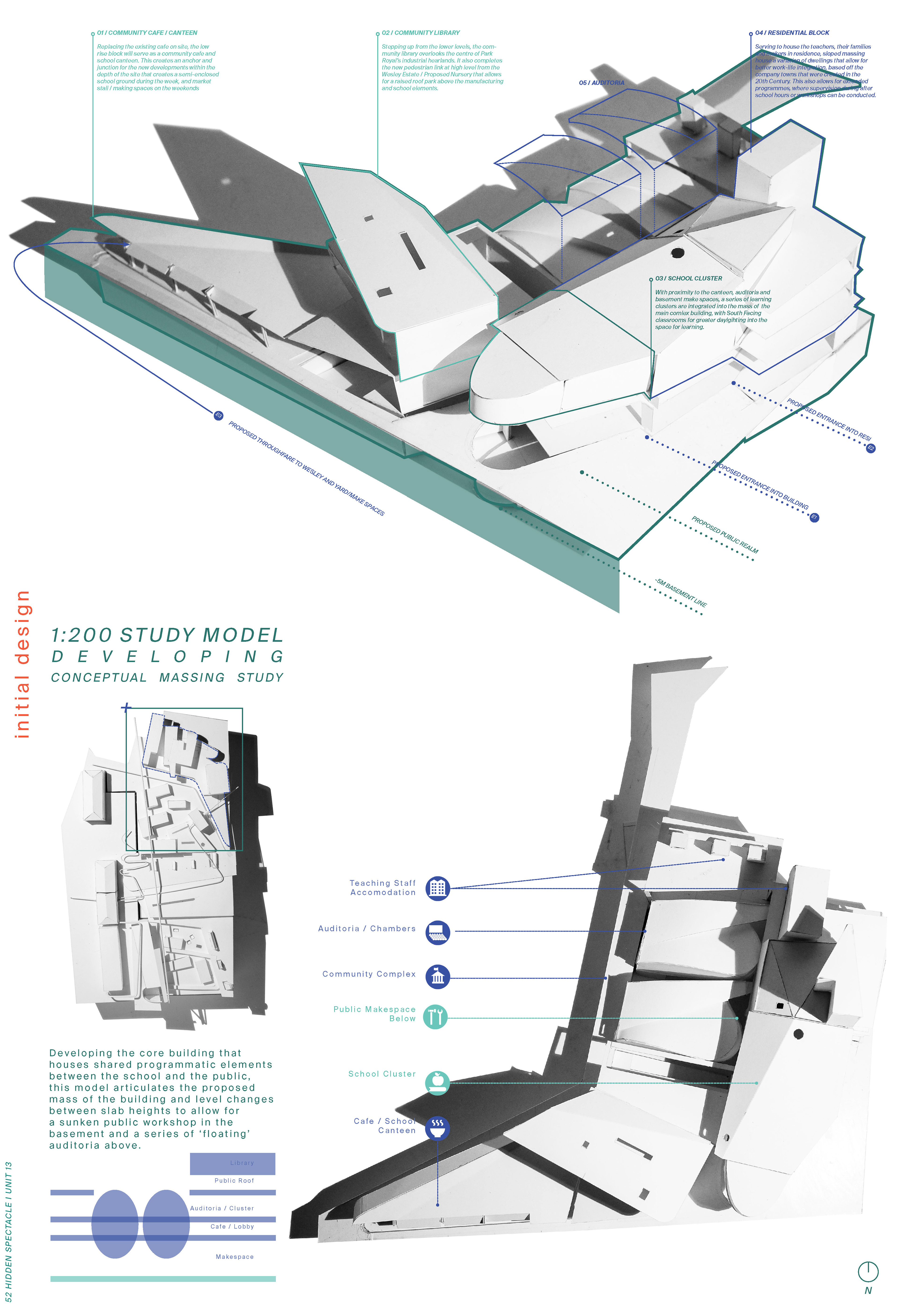

1:200 Building Fragment Studies
1:200 Building Fragment Studies
Phased Zoning Drawing for an Open, Transformable Academy Space
Phased Zoning Drawing for an Open, Transformable Academy Space
Designing Building as Pedagogy

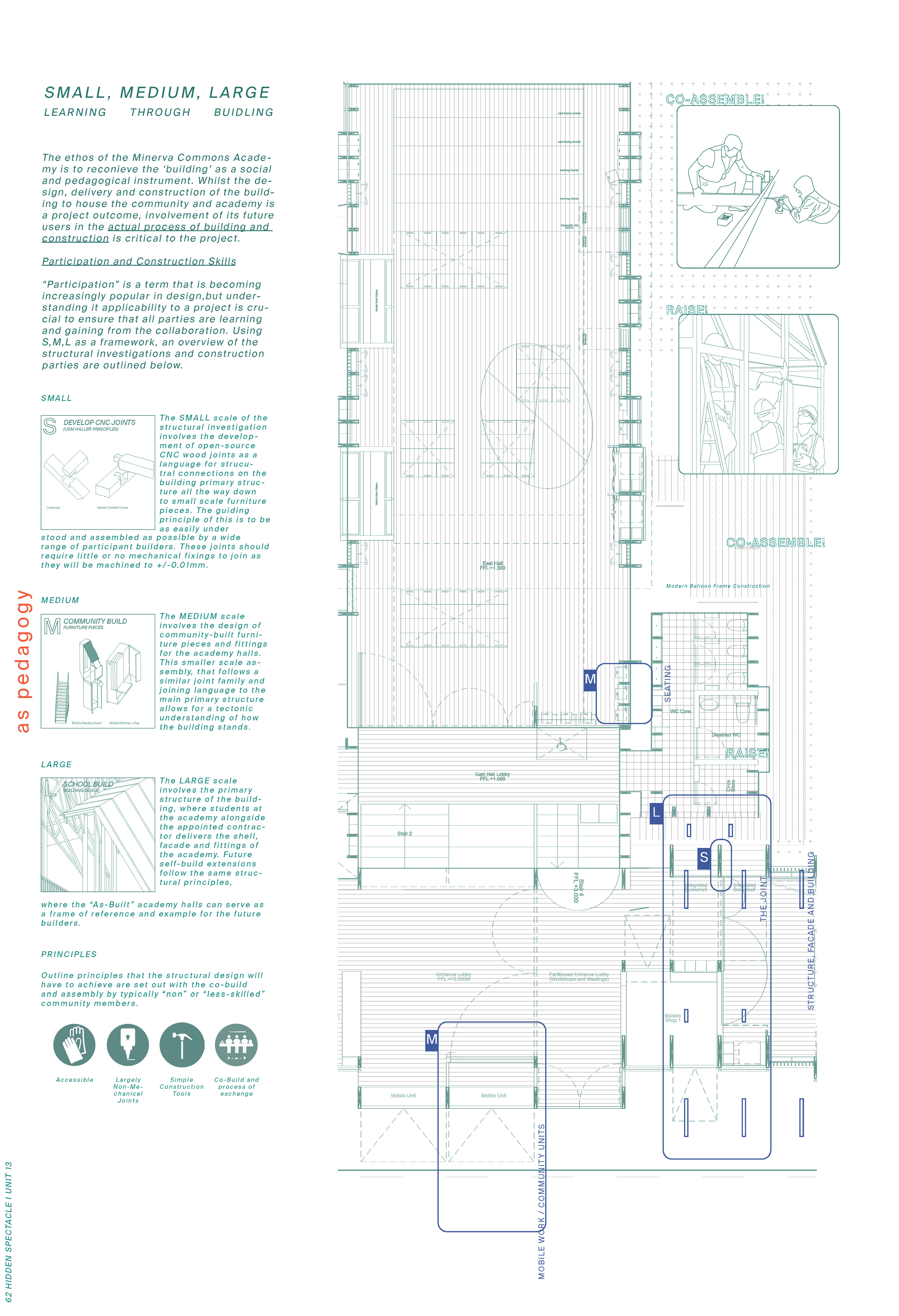

The act of 'building' and the building itself as a pedagogical entity for the academy is designed from structure through to wider legislation and curriculum. Through creating 3 scales of timber construction (Small - The Joint, Medium - The Spaces, Large - The Structure), students and residents of the wider Park Royal community can come to-gether as an act of co-building this new community asset - A Maker's academy in the day to address the high levels of youth unemployment in the area and a flexible, transforming school hall space into a community building, akin to the German Mehrzweckhalle.
Digital Drawings

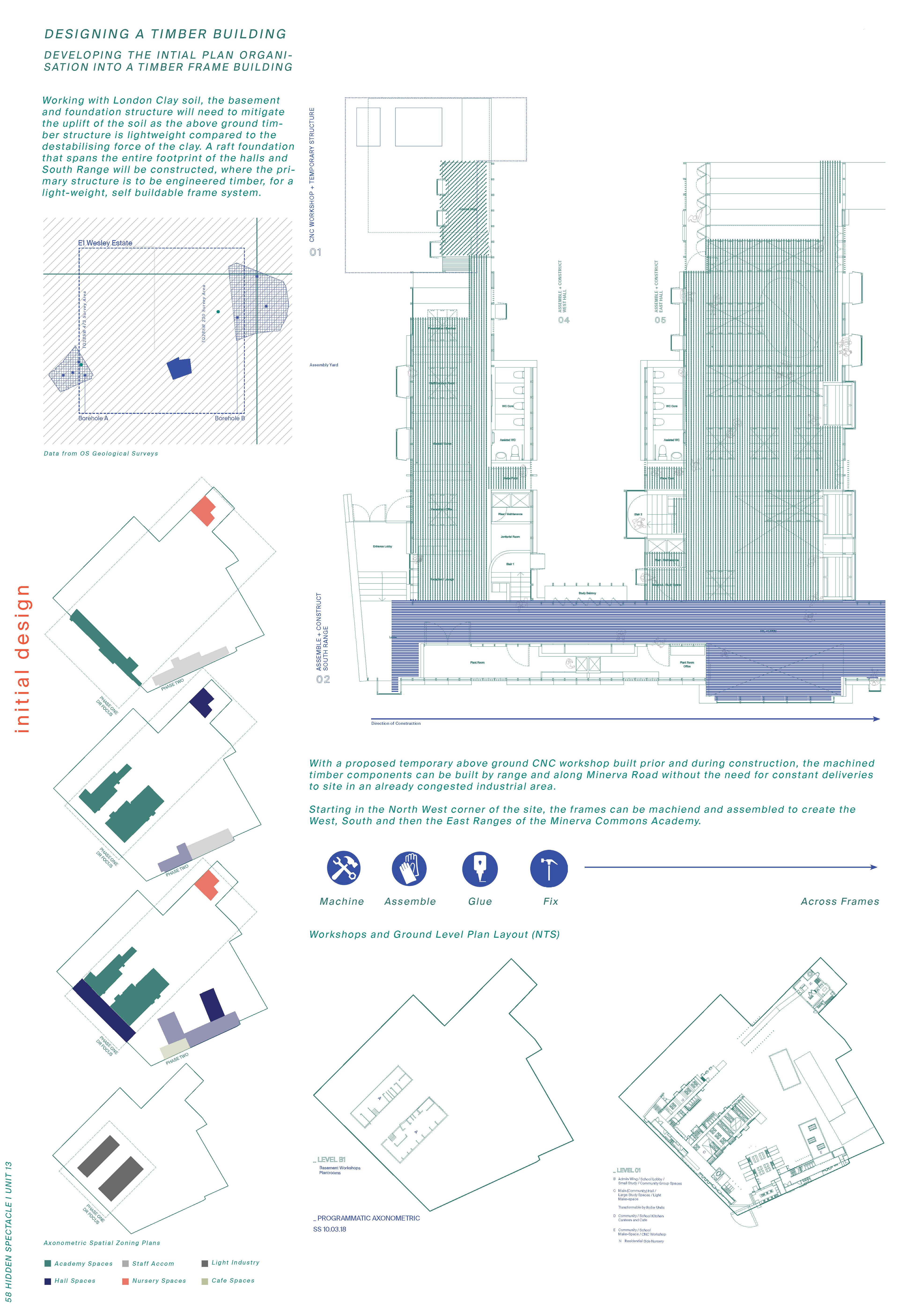

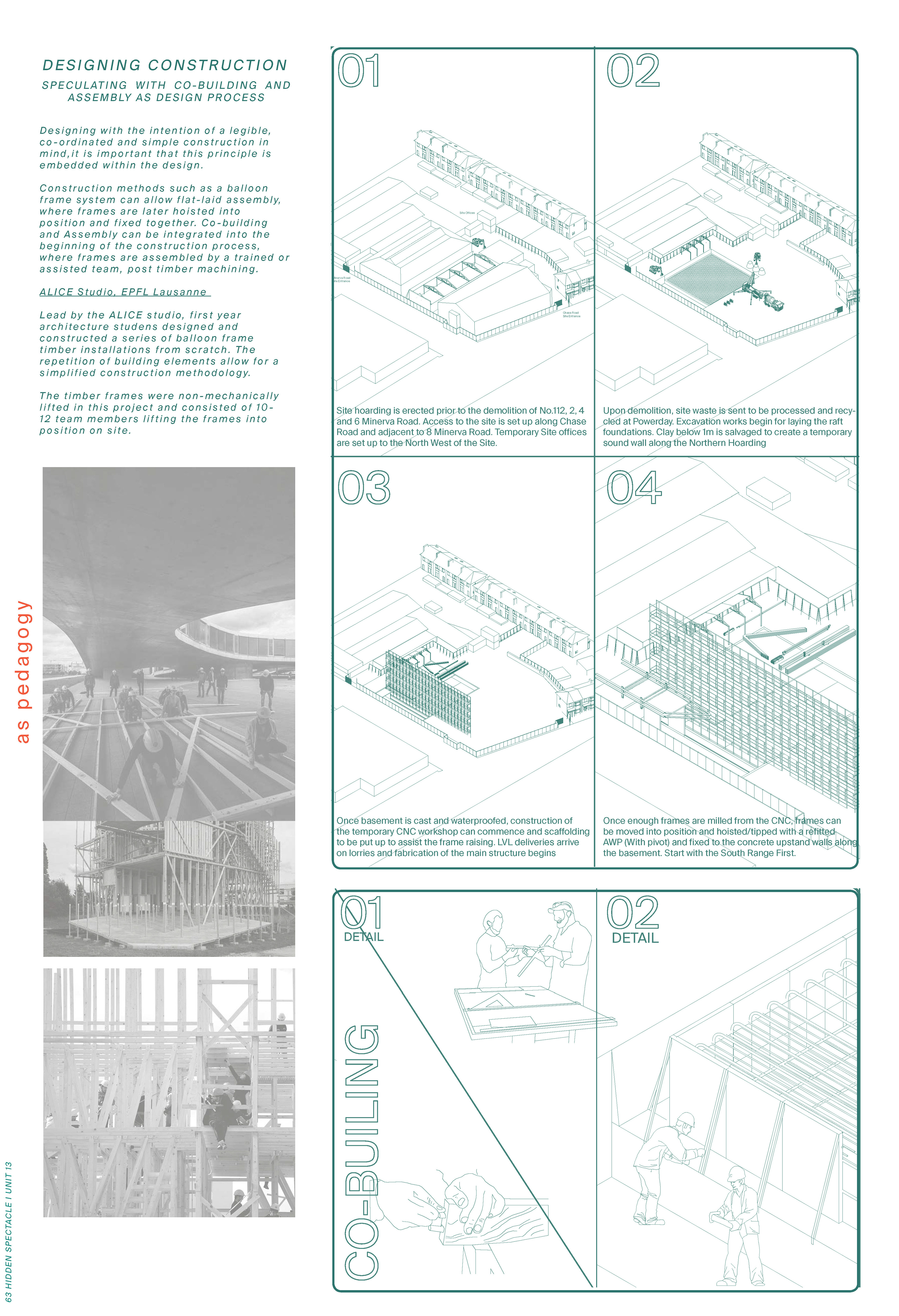

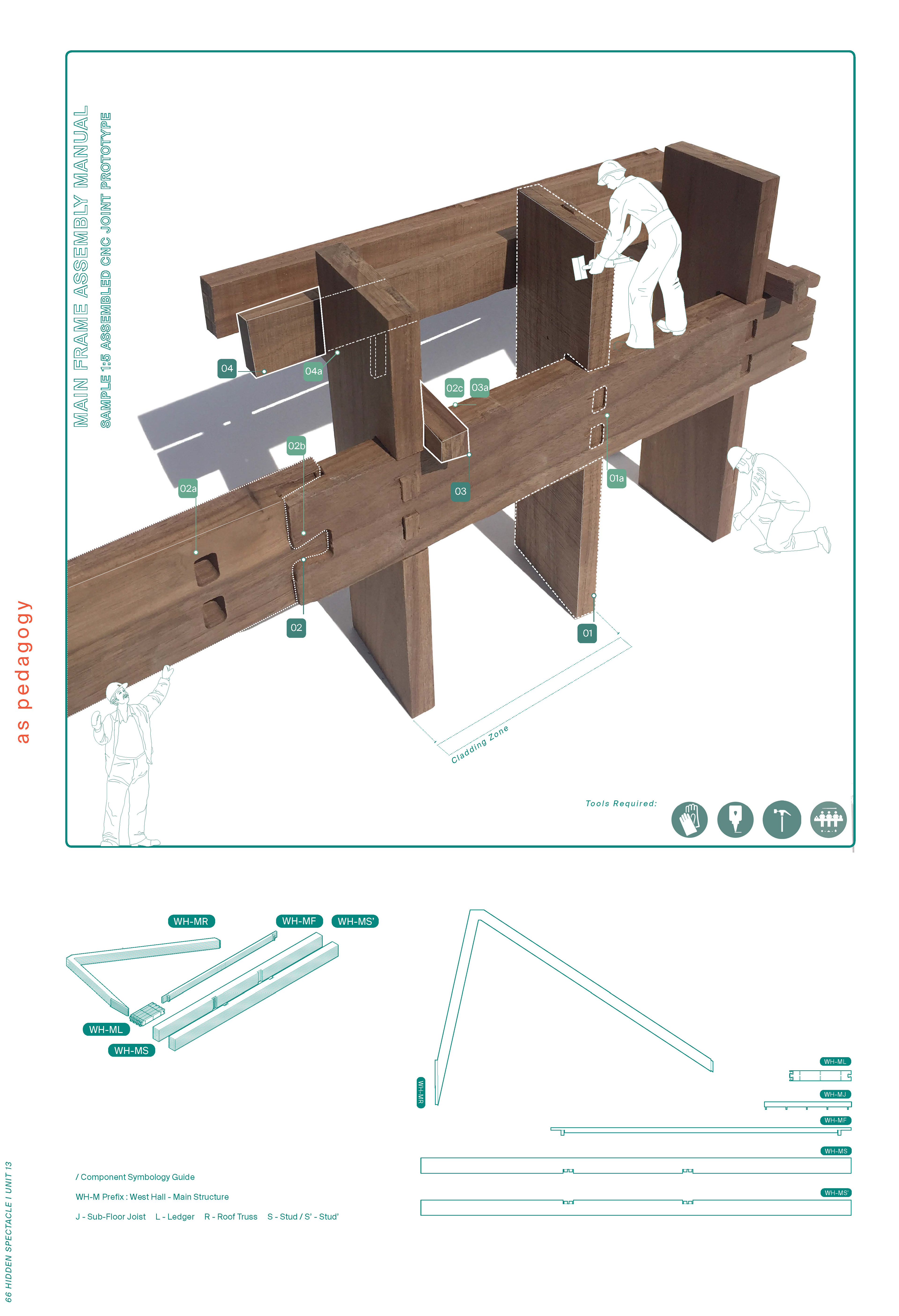

The Construction Sequence - Frame Raising
The construction sequence has been designed so that a group of students (under the lead of an adult staff member) of around 8 are able to lift the CNC'd timber elements into place as the building continues to grow, a principal adapted from the North American Balloon Frame system.
Physical Model

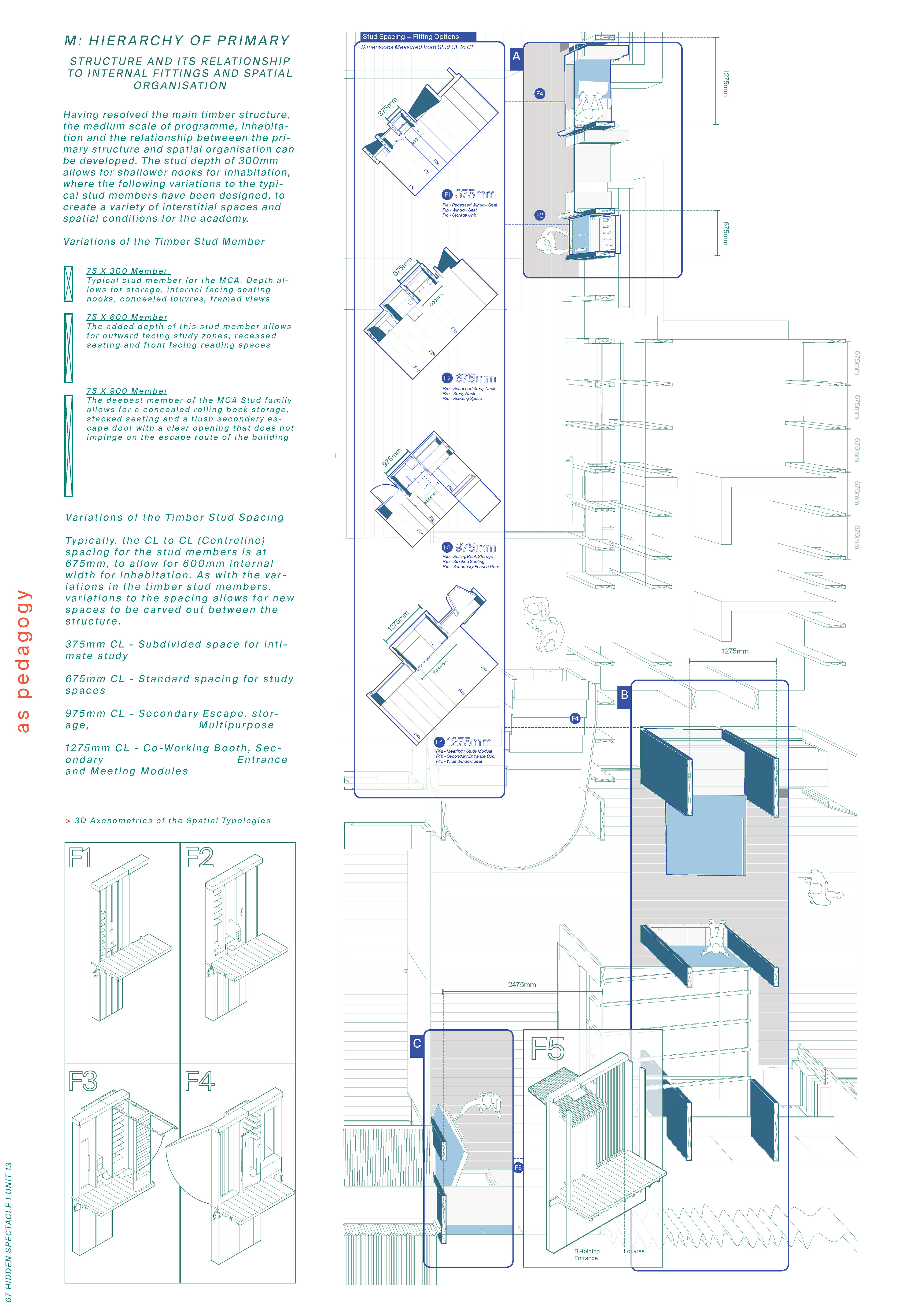

Main Frame Assembly and a Catalogue of Spaces
Through the spacing of the vertical timber studs, a collection of spaces care created, from openings, learning booths, nooks for co-working and learning facades that reveal the environmental and performance dynamics of different ventilation or build-up strategies.
Physical Model and Digital Drawing

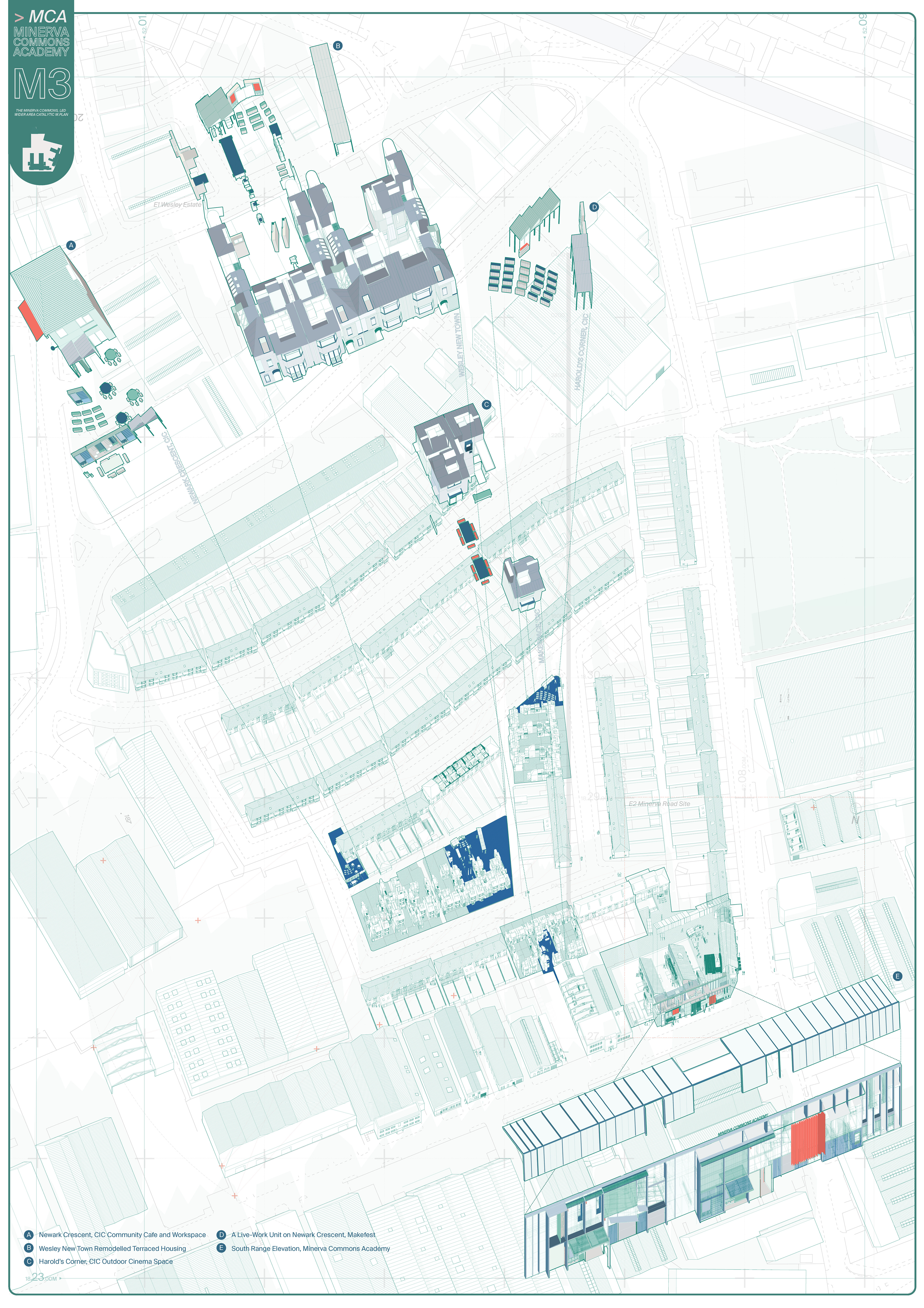

Minerva Commons Academy as Community Enabler
This drawing indicated the transformative power of the academy as a connection between the local makers and industry of Park Royal with the residents of the Wesley Estate. Could the building become a place for the local youth and makers to develop strategies for retrofitting the ageing housing and industrial warehouse stock, along with creating a new space for community decisions and coming-togtherness that does not exist on site currently?
Digital Drawing

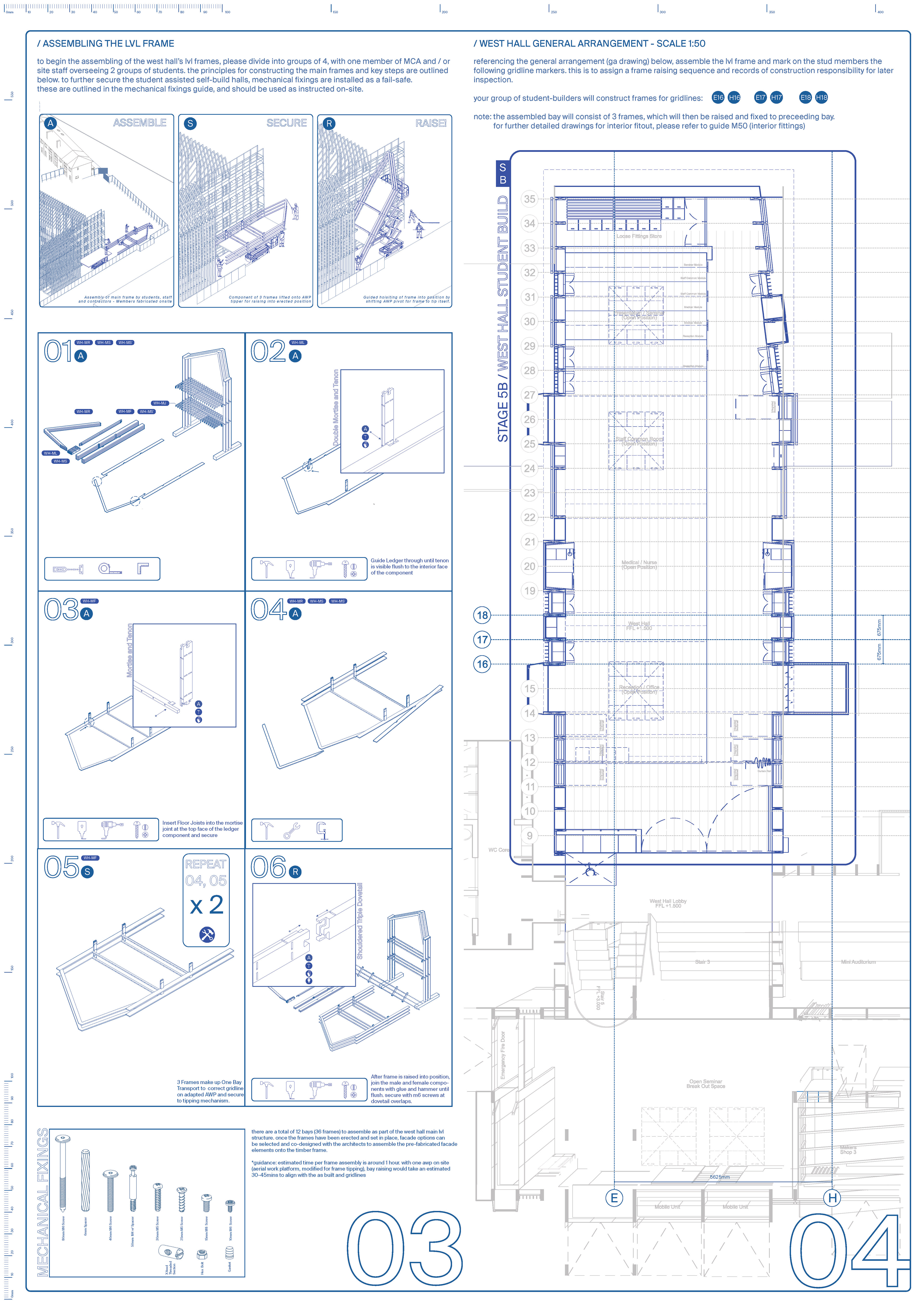

Student Assembly Manual
An instruction manual for the student assembly of the Minerva Commons Academy's main halls
Digital Drawing
Scale 1:50 Drawing (@A3+) of the MCA West Hall in Academy Configuration
A drawing showing the community hall and split-level lobby / circulation spaces in academy configuration
Digital Drawing
Community Assembly Manual

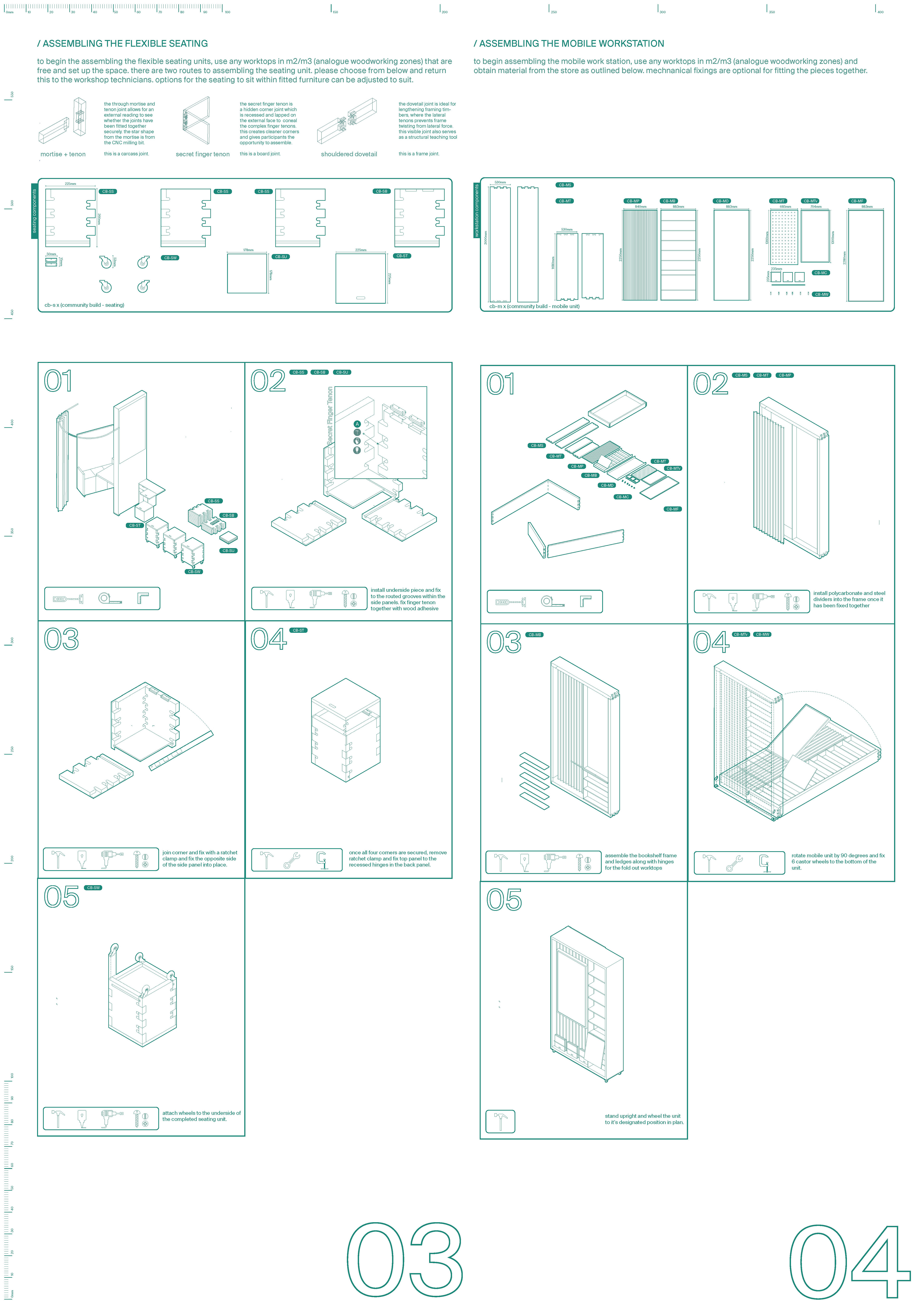

An instruction manual for the community assembly of the Minerva Commons Academy's mobile furniture and fittings
Digital Drawing

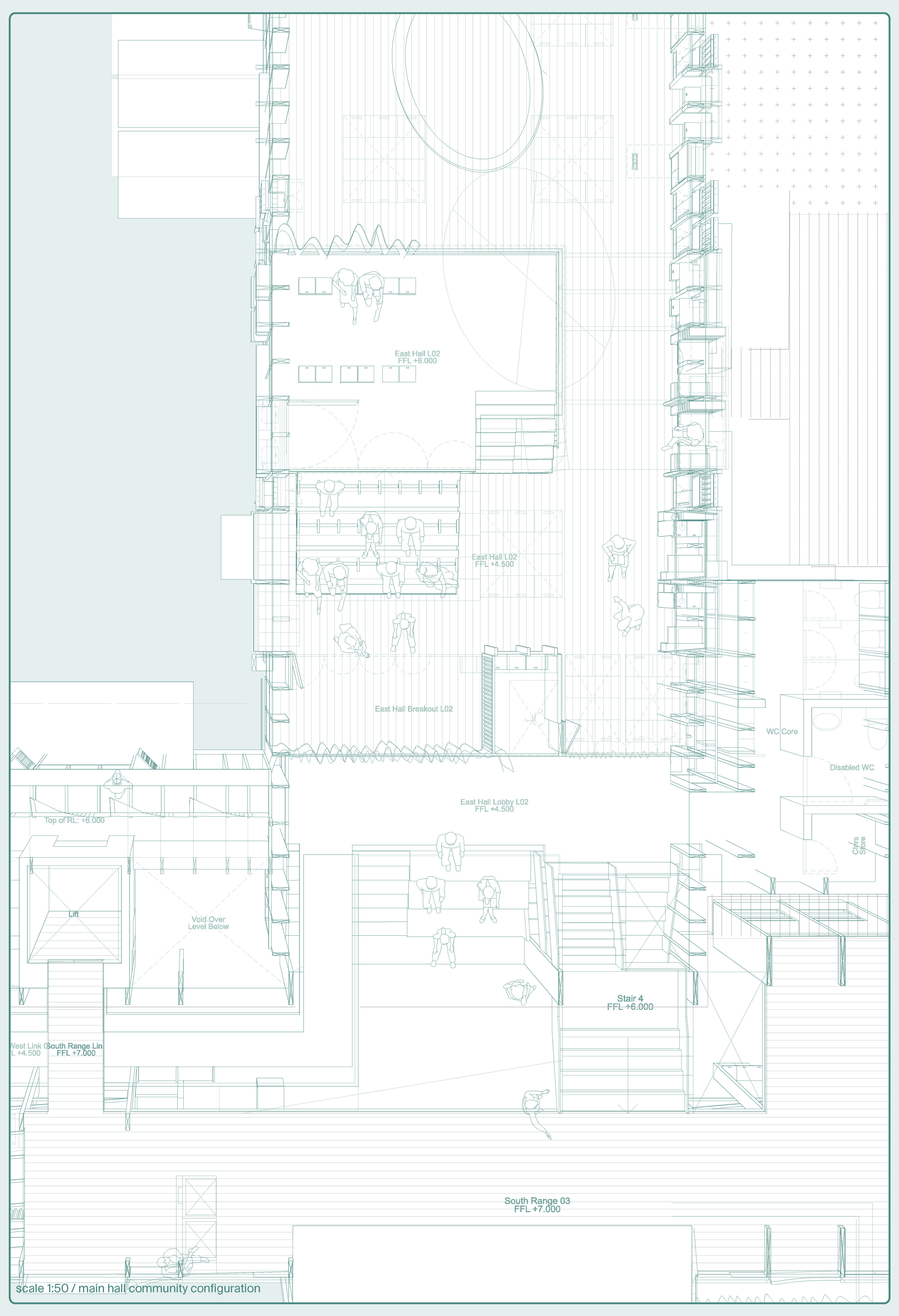

Scale 1:50 Drawing (@A3+) of the MCA East Hall in Community Configuration
A drawing showing the community hall and split-level lobby / circulation spaces in community hall configuration.
Digital Drawing

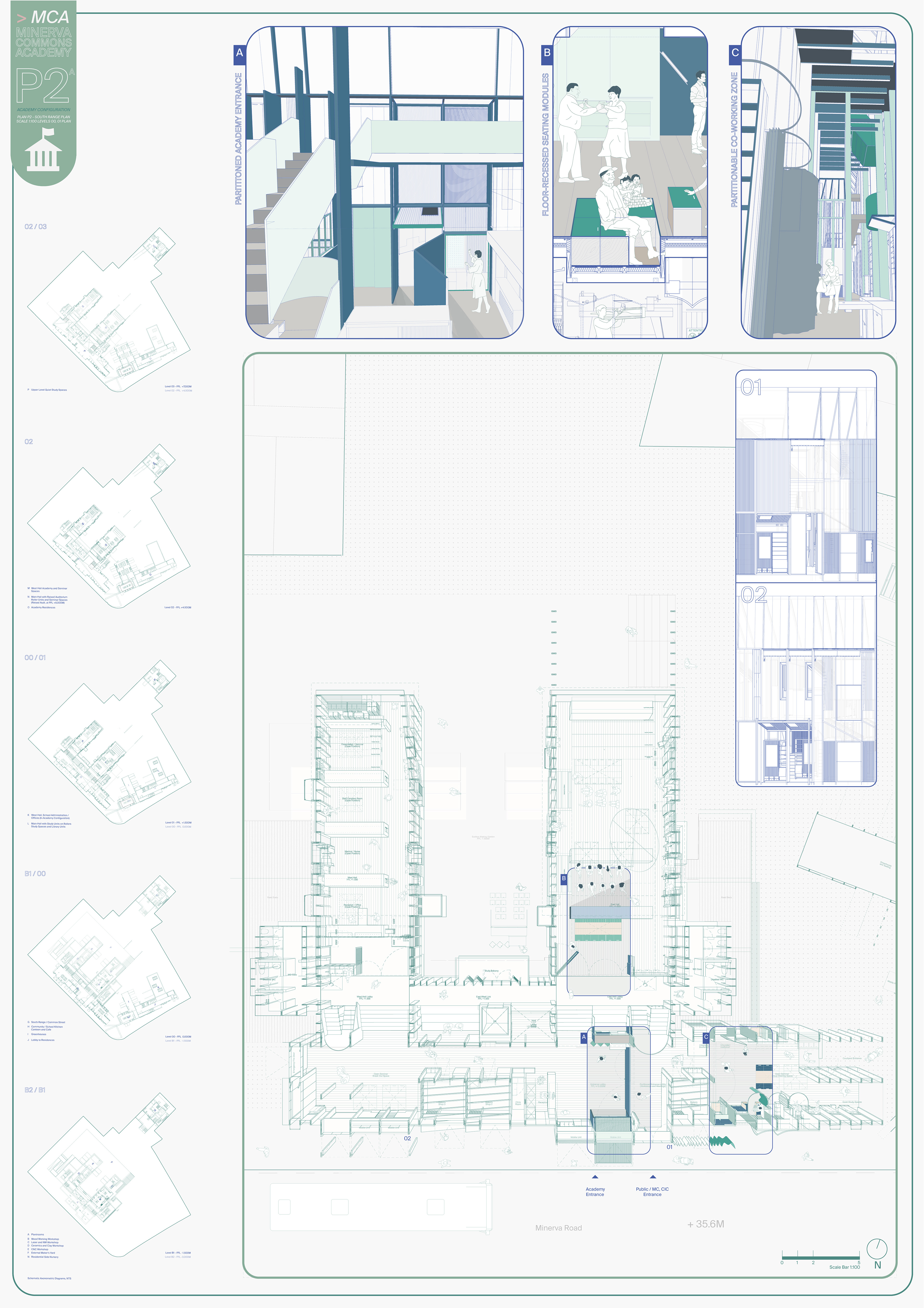

Minerva Commons Academy, GA Plan
General Arrangement Plan of the Ground and First (Split Level) Levels of the Building.
Digital Drawing

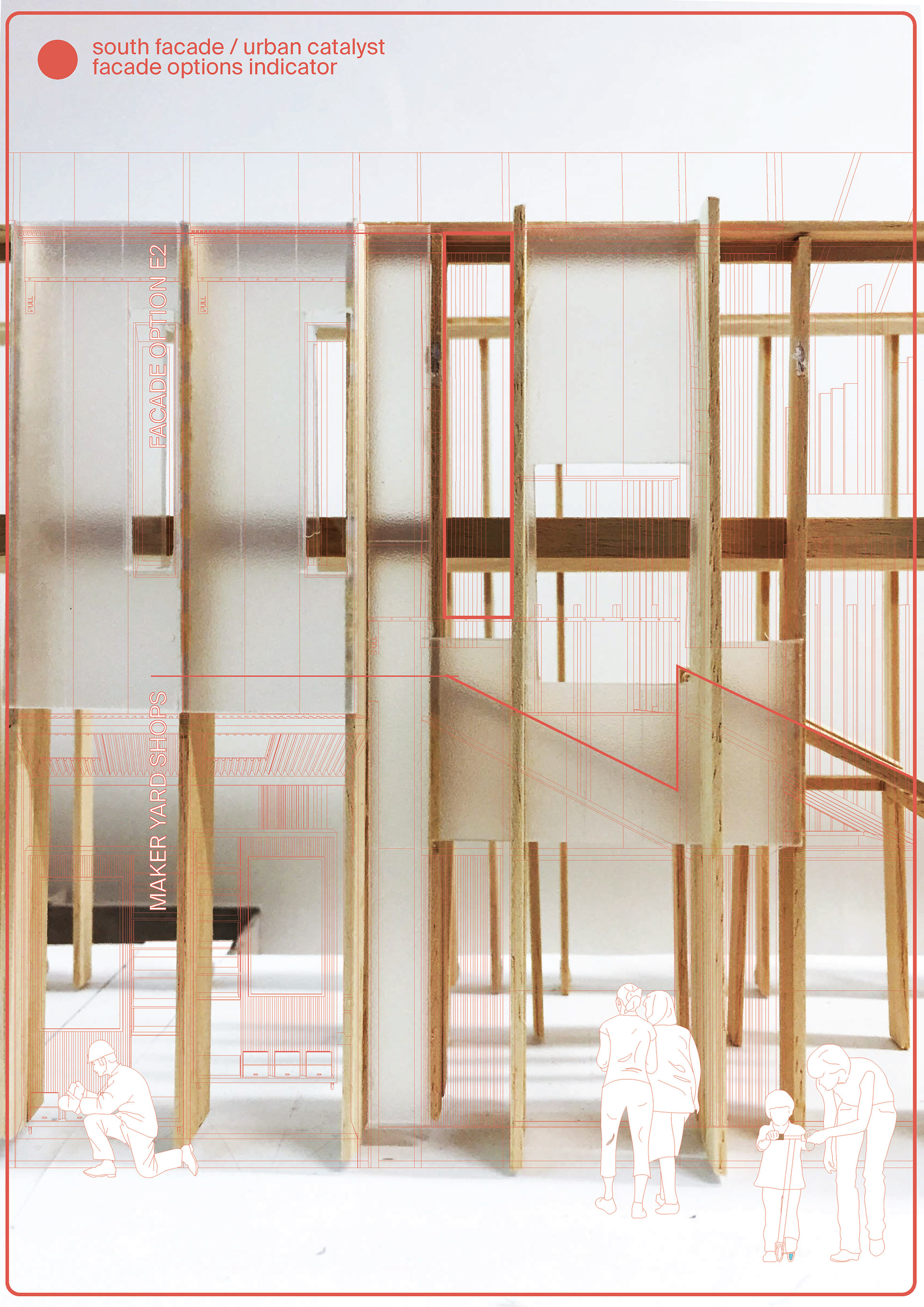

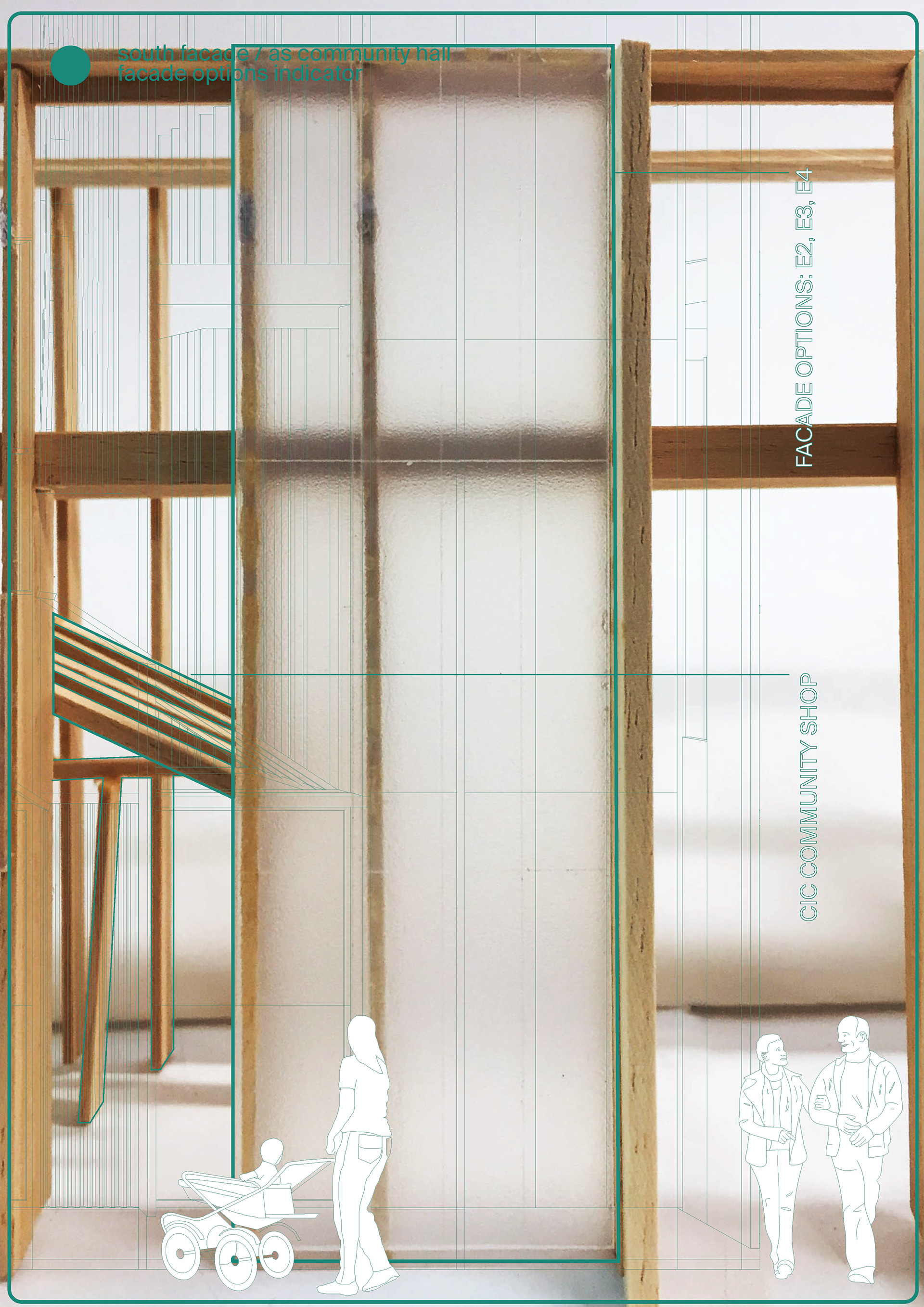

Scoping of Participatory Elements and Façade Study

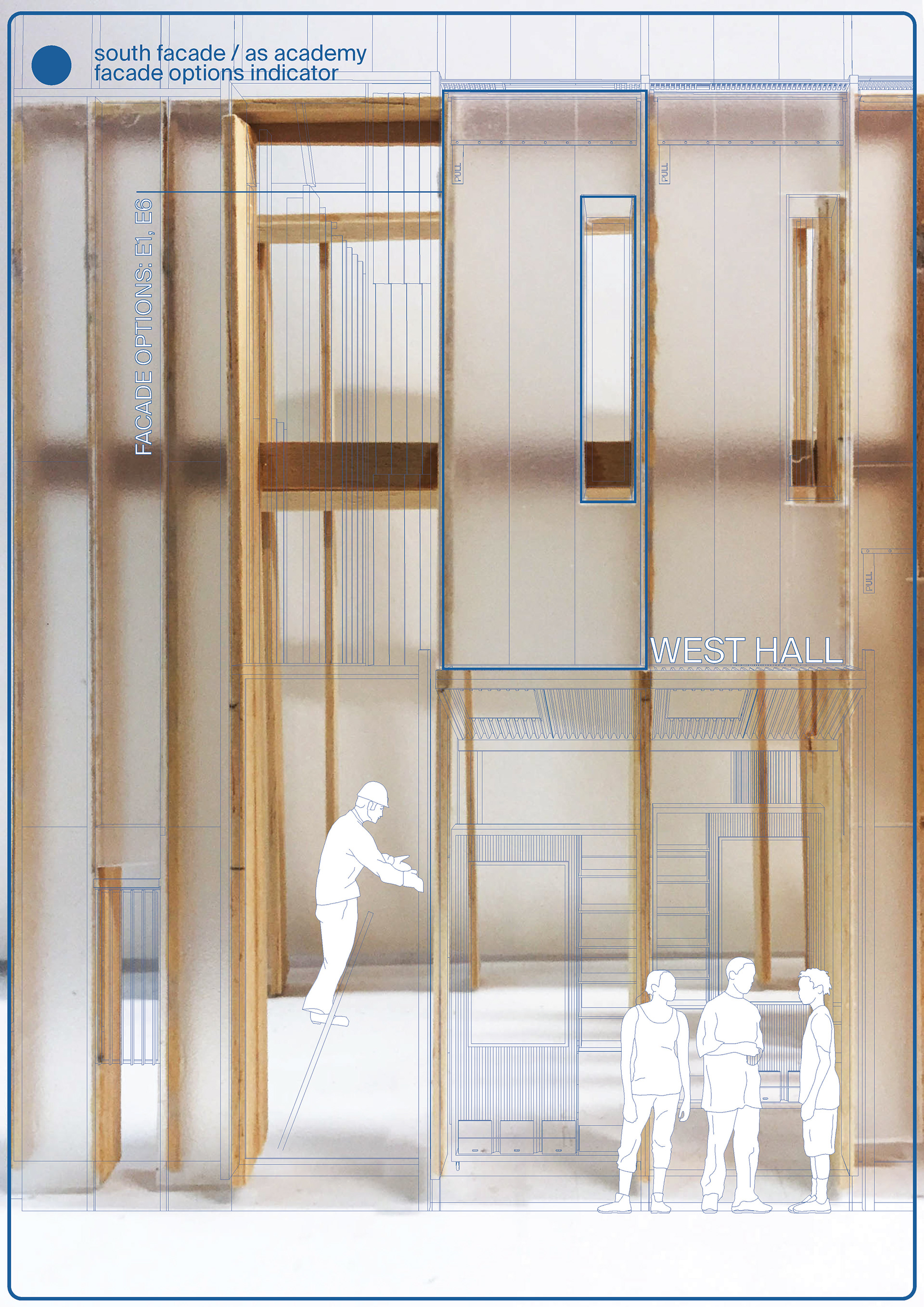

Using the scale model as an indicator of materiality (Polycarbonate Panels spaced between the timber studs), these drawings indicate the level of engagement and scope in which the different actors within the MCA contribute to the project.
Hybridised Drawing

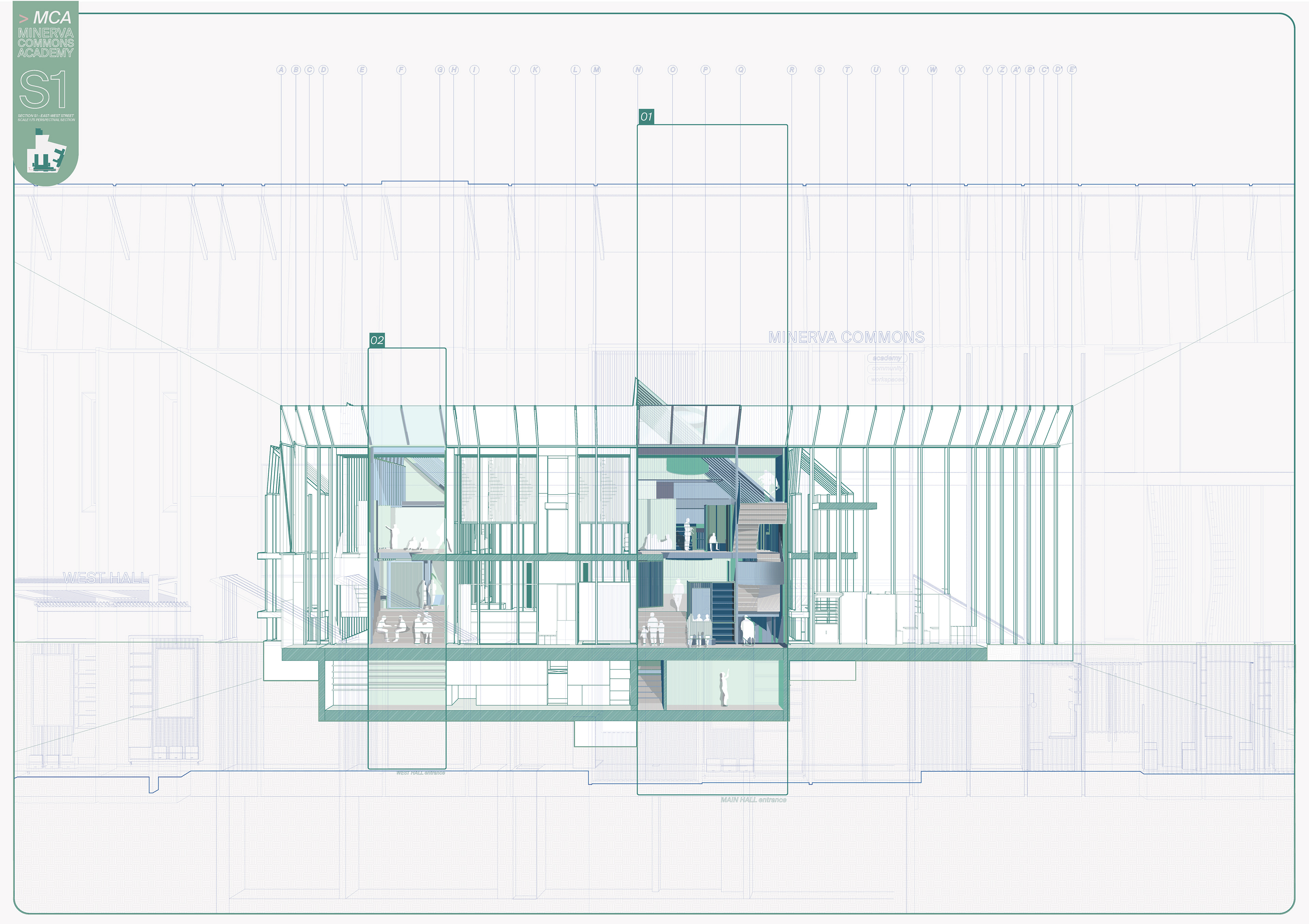

A Perspectival Section, Minerva Commons Academy
Overlaid facade study onto a section cut of the main access and and circulation through the academy
Digital Drawing

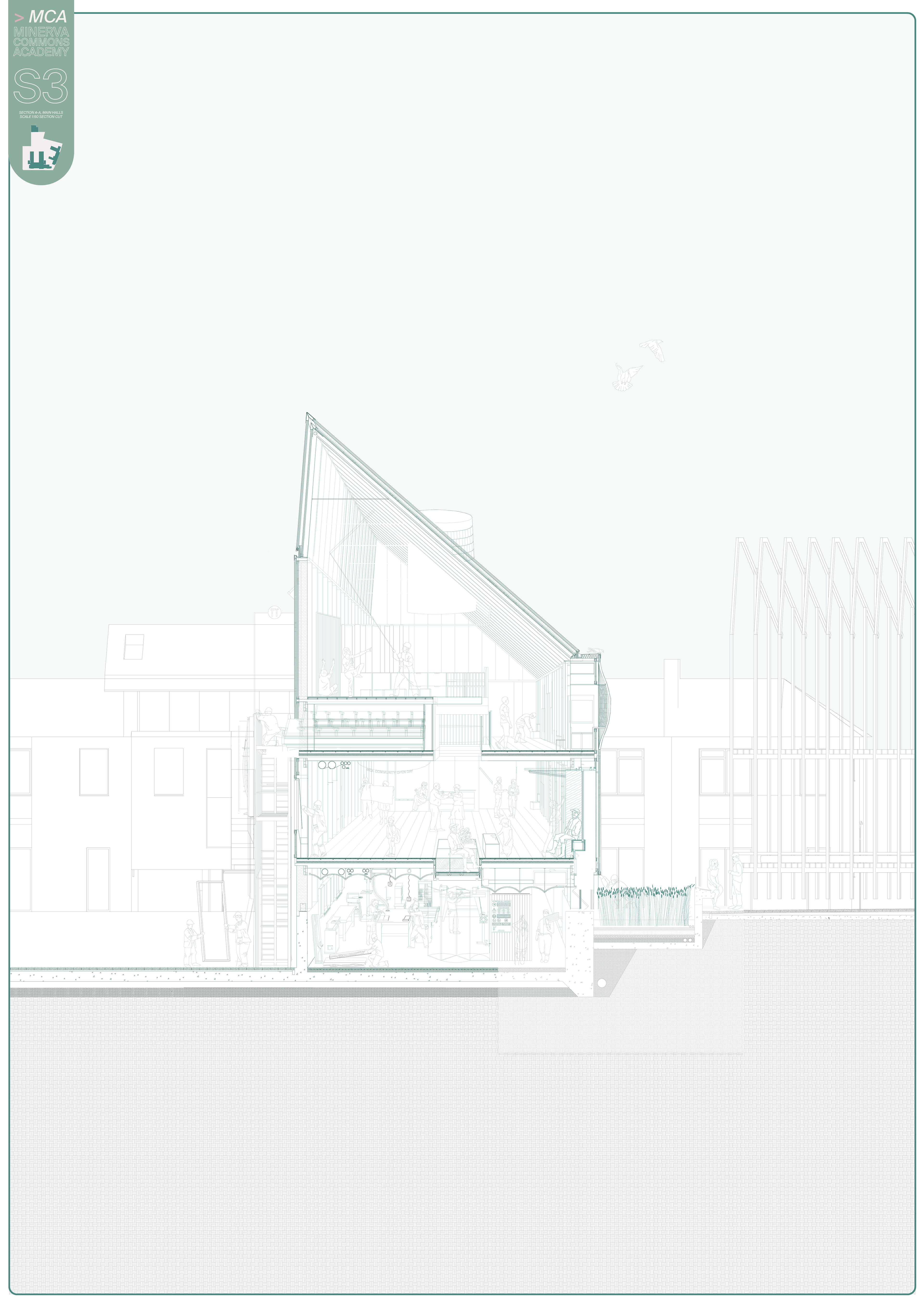

Detailed Section, East Halls of the Academy
Short Section detailing the relationship between the transformable hall spaces and the workshop spaces below.
Digital Drawing
Minerva Commons Academy Consultation Toolkit

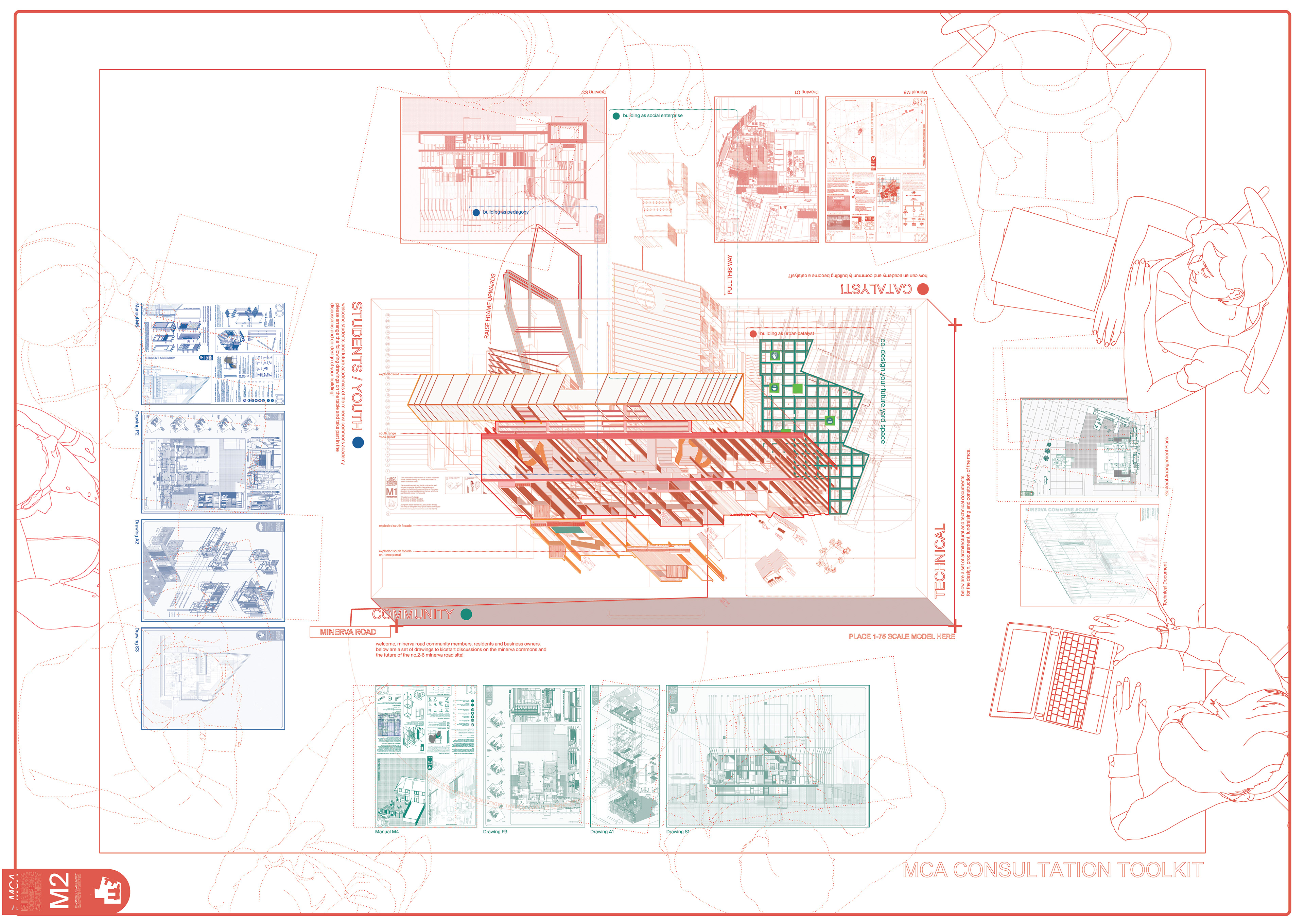

A consultation toolkit for local engagement and meetings (pre-construction) with different stakeholders on responsibilities and design agency over each design stage of the architectural design process
Digital Drawing on Canvas
Park Royal is currently at an urban and theoretical juncture. With the boring of a new piece of state infrastructure and an insatiable demand for 'growth', London's industrial heartland for food production and light manufacturing is under threat. Often viewed in passing as trainline converge towards the North-Eastern fringes of the estate, the area provides for one-third of London's food supplies alongside skilled makers that facilitate the city's creative industries.
As the OPDC (Old Oak and Park Royal Development Corporation) seek to supply 25,000 new homes and generate 65,000 new jobs with the arrival of Crossrail and HS2 at Old Oak Common, the socio-economic landscape of Park Royal is shifting, and is one that could improve access, connectivity and simultaneously disrupt and displace the people and praxis that exist within it. Situated next to one of London's most deprived neighborhoods, this proposal seeks to re-negotiate the boundary condition between industry and living, by introducing a vocational academy that transform the site into a pedagogical and social catalyst.
Building (verb) as Pedagogy
The MCA is an alternative and vocational model of education that addresses the youth unemployment and high youth deprivation in the area. As an "Academy", the school will educate 50 students a year, from Years 10-11 containing a heavily making-lead programme. Teaching will be lead by the makers of Minerva Road and integrated workshops below the transformable school halls become open to the local community and startups diurnally.
Building as Community Resource
The current disconnect between the residential estate and industry is negotiated through the provision of community hall and maker spaces, similar to a German Mehrzweckhalle. Open access for local residents and light industry create a local ecology of makers and thinkers that co-design, fabricate and assemble worktops, fittings and furniture for the local common good. The school halls that are on roller units are transformed between night and day into school and workspaces.
Building as Urban-Social Catalyst
The catalytic component of this building and programme allows for the integration and collaboration between residents, businesses and makers through the profess of learning through making. By empowering students and the local youth to build and make through the academy, the relationship between Minerva Road and the Wesley Estate can be collectively transformed. Skills gained can be used to refit the ageing housing stock into rentable units for living and working, supplying an extra 600 affordable dwellings for the area in line with the OPDC Area plan.
The MCA becomes a testbed for making, skill share, entrepreneurship and collaboration between currently opposing communities.
For the Design Realisation Report underpinning the technical design and delivery of the project, click here
Design Realisation Prize
Distinction in Design

Project /  MArch (Year 4) Architectural Design , Bartlett Unit 13
Design Tutors /  Sabine Storp + Patrick Weber
Year / 2019
